Delta Lake Explained with Scenarios: The Complete Beginner-Friendly Guide

Big data is everywhere ,companies store petabytes of information in data lakes (Amazon S3, Azure Data Lake Storage, Google Cloud Storage).
But data lakes have a big problem: they don’t guarantee reliability.

👉 If two people write data at the same time, files can get corrupted.
👉 If an update fails halfway, you’re stuck with broken data.
👉 If someone queries during a write, they might see inconsistent results.

This is why Delta Lake was created.

Delta Lake is an open-source storage layer built on top of your existing data lake that adds ACID transactions, versioning, and performance optimizations.

Think of it as giving your raw data lake the brains of a database.

In this guide, we’ll break Delta Lake down step by step so even if you’re new, you’ll clearly understand how it works.

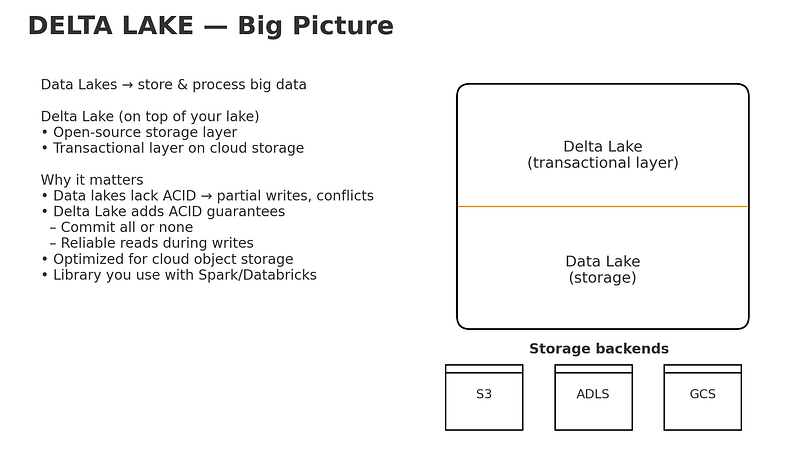

1. What Is Delta Lake?

Let’s keep it simple.

  • A data lake is just a storage system → it stores all kinds of data (CSV, JSON, Parquet, logs, images).
  • But it doesn’t know how to handle transactions → like “insert this row safely”, “update this record only if successful”, “rollback if something fails”.

Delta Lake fixes this.

Delta Lake = Data Lake + Transaction Log + ACID Guarantees

  • It still stores data in Parquet files (the same as before).
  • But it adds a transaction log (JSON files) that tracks every change.
  • This transaction log is what makes Delta Lake reliable.

👉 Example analogy:

  • Imagine a bank.
  • Without transaction records, if two people withdraw money at the same time, accounts will get messed up.
  • With proper transaction logs, the bank knows who withdrew, when, and keeps balances correct.

Delta Lake is like that bank system — keeping your data lake consistent.

Press enter or click to view image in full size

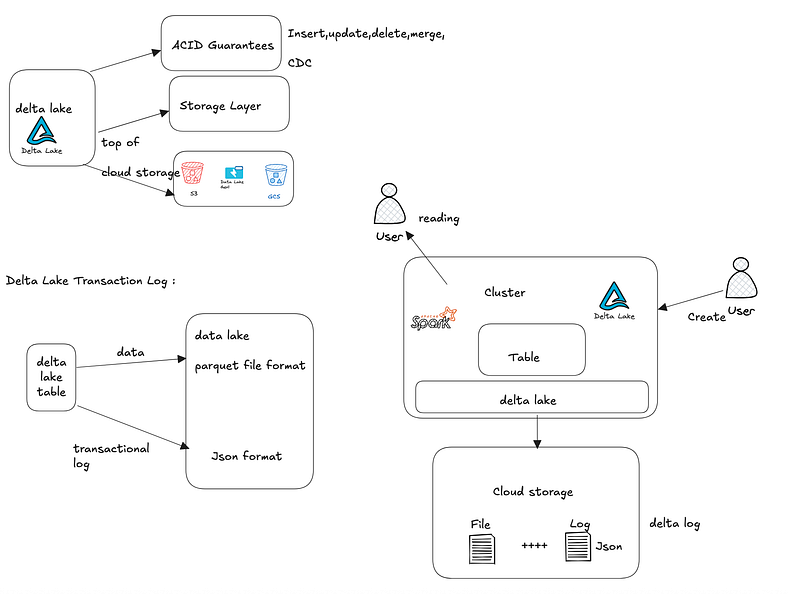

The Delta Log: The Heart of Delta Lake

Every Delta table has two parts:

1. Parquet Files – The actual data (immutable can’t be changed once written)

2. Transaction log  (_delta_log) -> JSON files that record:

  • Which Parquet files are valid
  • What operations happened (insert, update, delete)
  • Who changed what and when

👉 The log is the source of truth.

When you query a Delta table:

  • Spark doesn’t scan all files blindly.
  • It checks the log first, then only reads the valid files.

This makes Delta Lake:

  • Reliable (no partial reads)
  • Traceable (you know the history)
  • Powerful (supports rollback, audit, time travel)

Press enter or click to view image in full size

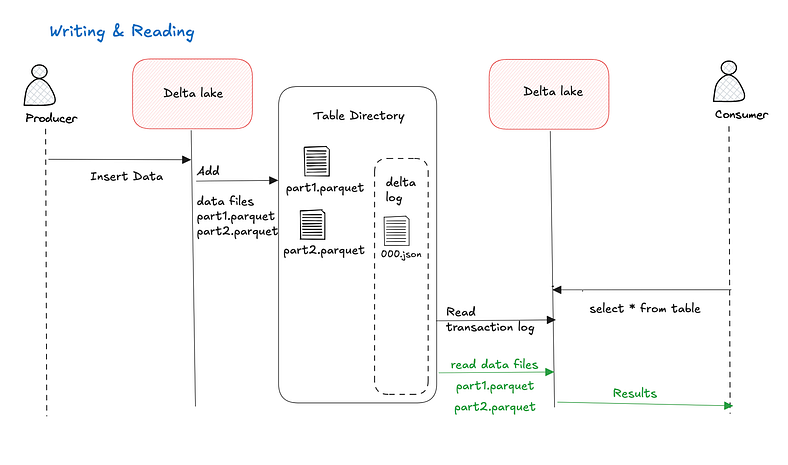

3. Scenario 1: Writing & Reading

Let’s meet two users:

  • Alice (producer) → writes data
  • Bob (consumer) → reads data

Step 1: Write (Alice)

  • Alice inserts data.
  • Delta Lake saves them into files → part1.parquet, part2.parquet.
  • Delta creates a log entry → 000.json.

This log records:

  • Operation: INSERT
  • Files created: part1, part2
  • Timestamp

Step 2: Read (Bob)

  • Bob runs SELECT * FROM table.
  • Spark checks the log first → sees part1 and part2.
  • Reads those files → returns clean data.

✅ Bob always sees a consistent snapshot.

Press enter or click to view image in full size

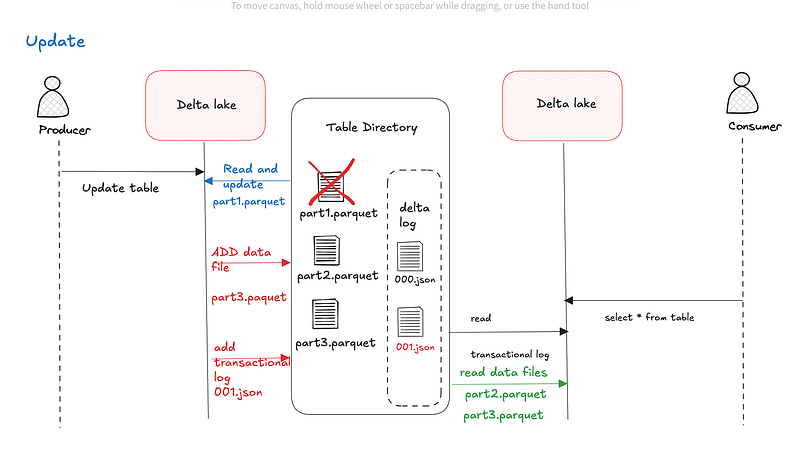

4. Scenario 2: Update (Immutability in Action)

Problem: Parquet files can’t be changed (immutable).
So how do we update data?

Step 1: Update (Alice)

  • Alice updates a record in part1.parquet.
  • Delta Lake does not edit part1.
  • Instead, it creates a new file → part3.parquet.
  • Then it updates the log (001.json):
  • Marks part1 as removed
  • Marks part3 as added

Step 2: Read (Bob)

  • Bob queries the table.
  • Spark checks 001.json → valid files are now part2 + part3.
  • Bob sees updated data.

✅ Old data is still there → for auditing or time travel.

Press enter or click to view image in full size

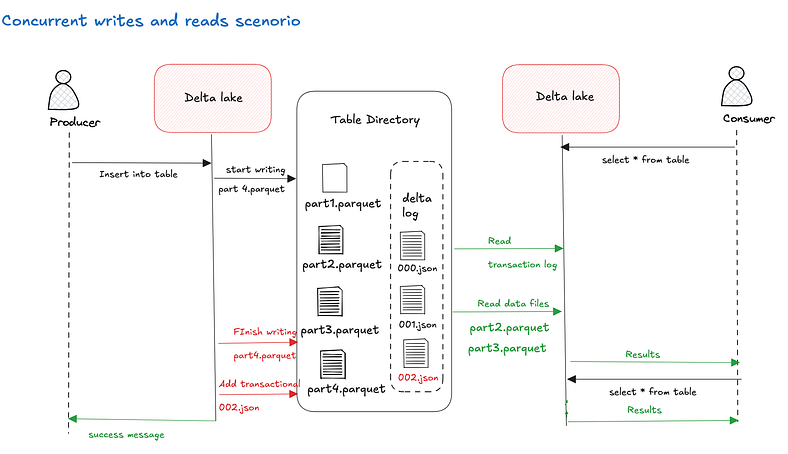

5. Scenario 3: Concurrent Writes & Reads

Problem: What if someone reads while another person is writing?

Step 1: Write (Alice)

  • Alice starts writing a new file → part4.parquet.
  • Not committed yet.

Step 2: Read (Bob)

  • At the same time, Bob queries the table.
  • Spark checks the log → part4 is not committed yet.
  • Bob only sees part2 + part3.

Step 3: Commit

  • Once Alice finishes, Delta logs 002.json.
  • Future queries now see part4 too.

✅ Readers never see incomplete data.

Press enter or click to view image in full size

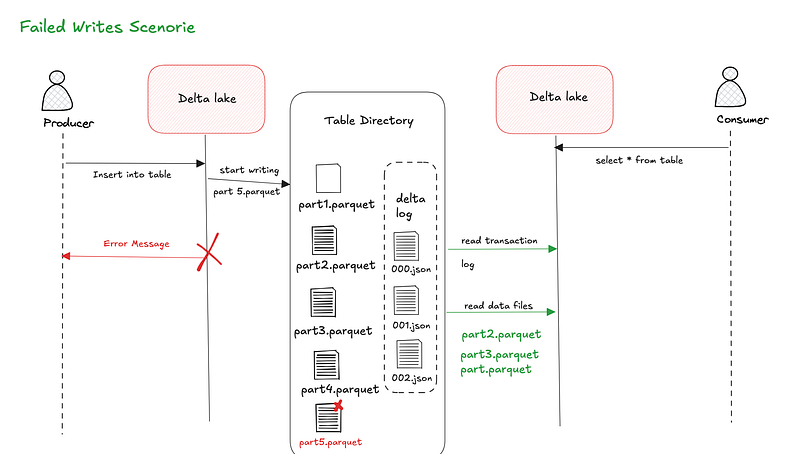

6. Scenario 4: Failed Writes (Rollback Protection)

Problem: What if a write fails halfway?

Step 1: Failed Write

  • Alice tries writing part5.parquet.
  • System crashes → file incomplete.

Step 2: Log Check

  • No commit in _delta_log.
  • Delta ignores part5.

Step 3: Read (Bob)

  • Bob queries the table.
  • Spark only uses valid files (part2, part3, part4).

✅ Dirty data never leaks to queries.
✅ Old files can be cleaned later with VACUUM.

Press enter or click to view image in full size

7. Advanced Features with Examples

🔹 Time Travel

See old versions of data.

🔹 Restore

Rollback to a safe state.

🔹 Optimize & Z-Order

Combine small files and reorder for faster queries.

🔹 Vacuum

Clean unused files.

8. Why Delta Lake Matters

  • ✅ Fixes data lake problems: inconsistent data, partial writes, corruption
  • ✅ Brings database-like reliability to data lakes
  • ✅ Works with both batch and streaming pipelines
  • ✅ Enables governance, auditing, rollback, and recovery
  • ✅ Powers the Databricks Lakehouse model

📌 In short:
Delta Lake = Data Lake + ACID Reliability + Performance + Governance
